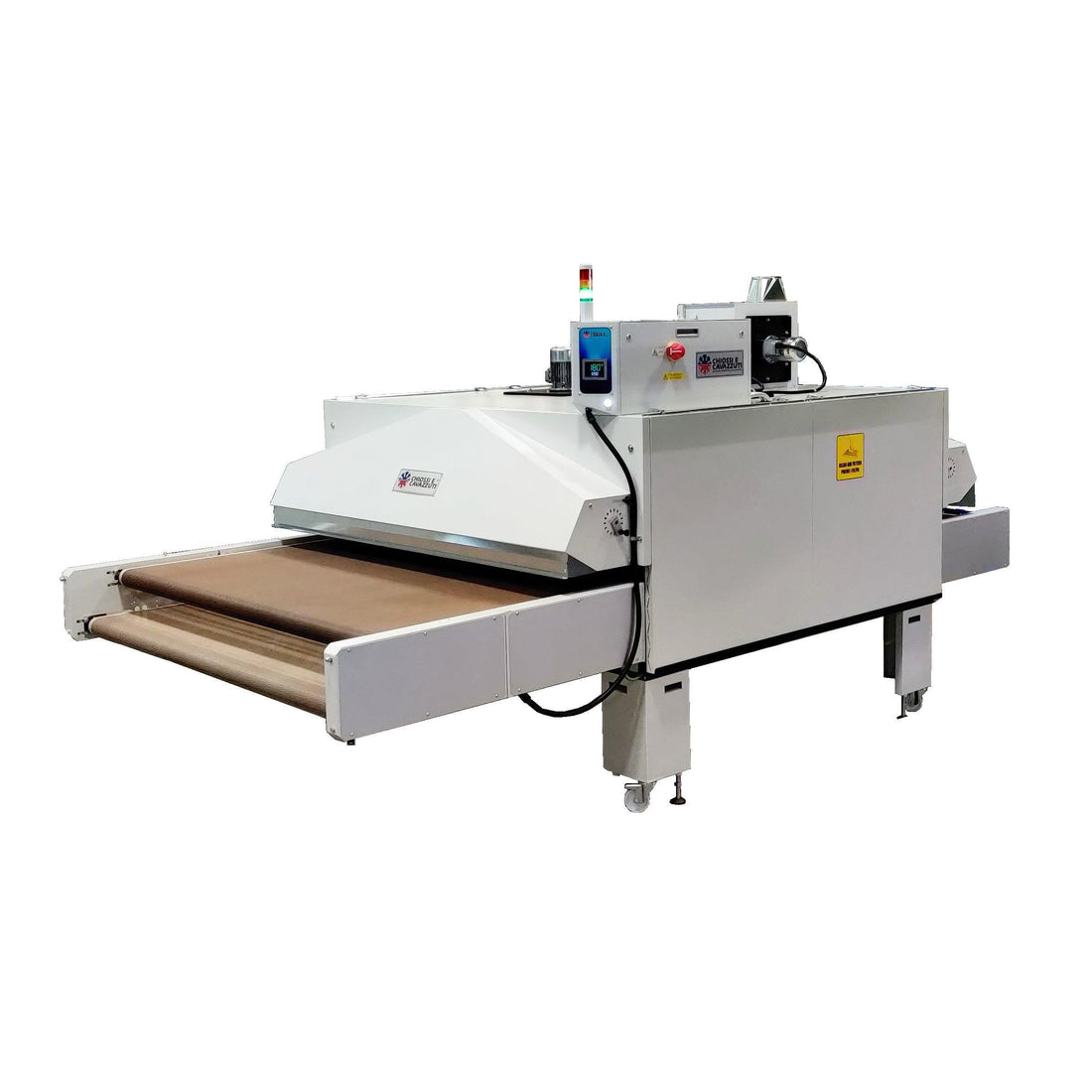

Cavazutti Dual 1900 Electric w/return belt 220v

Backordered
$26,995.00
SKU CC-1390014

Specifically designed to cure all water base and plastisol inks for screen printing and direct to garment.

Overview

The Dual 1900 is built and designed with almost 40 years of experience for long lasting and high quality machines, proudly produced in Italy. Specifically designed to cure and dry digital printing on fabrics, the massive advantage of these dryers is the high volume of forced air circulation.

The massive advantage of these dryers is the high volume of forced air circulation: this facilitates and accelerates the evaporation of water-based digital inks with unmatched results on the finished garment in medium-long drying process.

Chiossi e Cavazzuti are premier conveyor dryers specifically designed to handle Direct-to-garment inks from Epson F2100 or F3070, Brother GTX Pro, Kornit Breeze, Avalanche, Atlas, HD6, Freejet and many more.

Shipping dimensions - Crate 1 - 86" x 86" x 82 (221 lbs) Crate 2 - 81" x 31" x 61" (1764 lbs)

Specifications
Technical Data
Dual 1900 | Dual 1200
Electrical requirements
400V 3phase (108V/230V 3 phase optional) | 400V 3phase (108V/230V 3 phase optional)
Power consumption
14kW-42A | 19kW-29A
Max temperature
356 F | 356F
Exhaust specification
180 m³/h - Ø 150 mm | 180 m³/h - Ø 150 mm
Tunnel length
78.75" | 78.75"
Belt Width
74" | 47.25"
Production (light-dark)
300-280 pieces per hour | 240-160 pieces per hour
Dimension (LxWxH)
149.6"x49.2"x88.6" | 161.4"x 59.02" x 88.6"
Shipping Weight
2000 lbs | 1719 lbs.
Data Sheets
